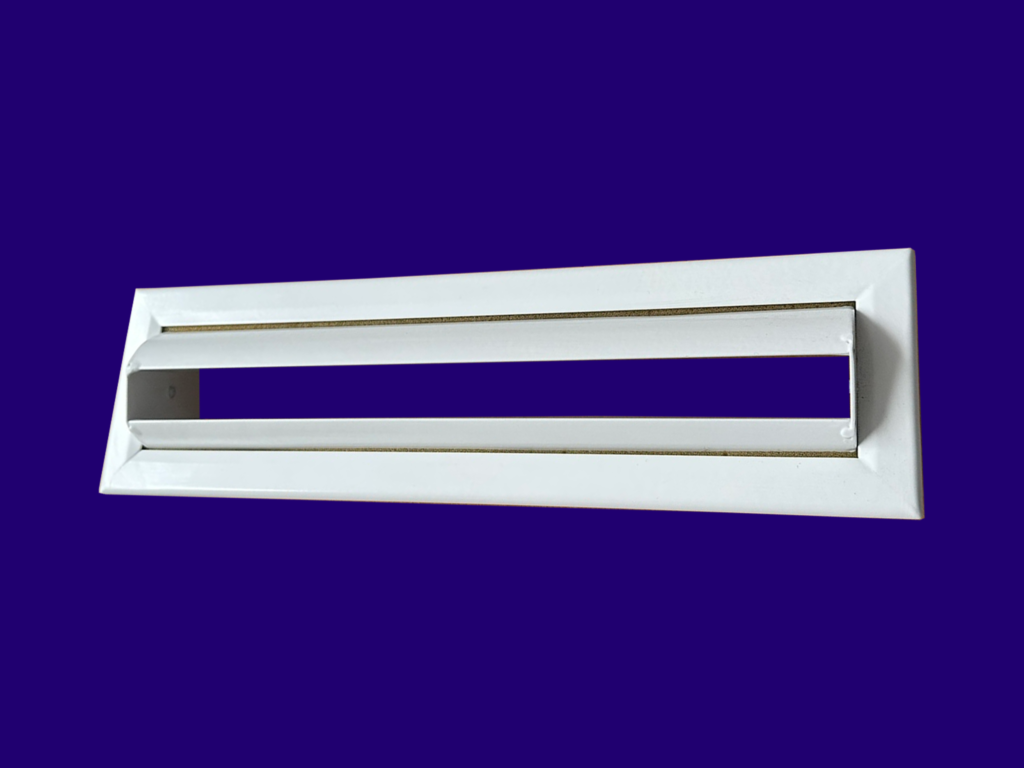

Linear Jet Diffuser

An extruded aluminium linear jet diffuser designed for medium to long throw applications, featuring trajectory control with adjustments upwards and downwards up to +/- 35 degrees.

PriceAvailable on requestRequest a quote for project pricing, samples and lead time.

SKU / code: AJD-L
Composition: High quality extruded aluminium
Dimensions: Available with slot openings of 20 mm, 30 mm, or 40 mm, and a standard flange width of 20 mm. Length (neck size) can be specified as per requirement.
Finish: Powder Coated

Enquiry goes directly to the brand
Ask for samples, sizes & data sheets
Free for architects & designers

The Linear Jet Diffuser (Model AJD-L) is designed for medium to long throw applications and is suitable for both ceiling and wall mounting. It features a modern aesthetic design manufactured from high-quality extruded aluminium with anti-corrosion properties. The diffuser's louver allows for precise trajectory control, as it can be adjusted upwards and downwards up to an angle of +/- 35 degrees. It is available with slot openings of 20 mm, 30 mm, and 40 mm, and utilizes a standard flange width of 20 mm. A gasket is fixed around the inside of the frame as a standard feature to prevent any air leakage. For enhanced supply air control, a plenum with an integrated damper can also be provided.

SKU / code	AJD-L
Composition	High quality extruded aluminium
Dimensions	Available with slot openings of 20 mm, 30 mm, or 40 mm, and a standard flange width of 20 mm. Length (neck size) can be specified as per requirement.
Finish	Powder Coated
Colour	According your requirements
Lead time	2 weeks - 3 weeks
Availability	ALL OVER INDIA
